Motherboard Problems Symptoms: 7 Critical Signs & How to Test

Did you know that nearly 30% of "motherboard failures" reported by users are actually just bad RAM, a failing power supply, or loose cables? Before you panic about losing data or facing a costly system rebuild, take a breath. Understanding motherboard problems symptoms is about differentiating true hardware faults from common false alarms. A burnt smell or a random restart doesn’t automatically mean the entire board is toast. In this guide, we move beyond guesswork. We will walk you through a diagnostic framework that starts with visual inspection, moves to behavioral analysis, and ends with an economic decision on whether to repair, replace, or recycle. By identifying specific signs like a failing POST code sequence or a localized short circuit, you can save hundreds of dollars and, more importantly, know exactly where to direct your next move.

Critical Physical Signs of a Bad Motherboard

When we talk about signs of bad motherboard issues, we often think of something dramatic like smoke. But in my 15 years of working with hardware, the most common failures are silent, gradual, and visible if you know where to look. You don’t need a multimeter to spot the first red flags; you just need a good light and a magnifying glass.

Visual Inspection: Spotting Burnt Components and Caps

The first step is always a visual sweep. I keep a high-resolution reference photo of a healthy board on my phone. When I inspect a client’s machine, I look specifically at the Voltage Regulator Module (VRM) area, usually located near the CPU socket. This is where high currents flow, making it a hotspot for stress.

What are you looking for? Start with the capacitors. Healthy electrolytic capacitors have flat, stamped tops. If you see capsulator bulging—where the top looks like a small, round hill—it means the internal electrolyte has degraded and is under pressure. This is a classic sign of aging or poor thermal management. While the "capacitor plague" of the early 2000s is largely over due to better manufacturing, heat still kills components. If the casing is leaking a brownish or blackish sludge, stop. Do not power on the board.

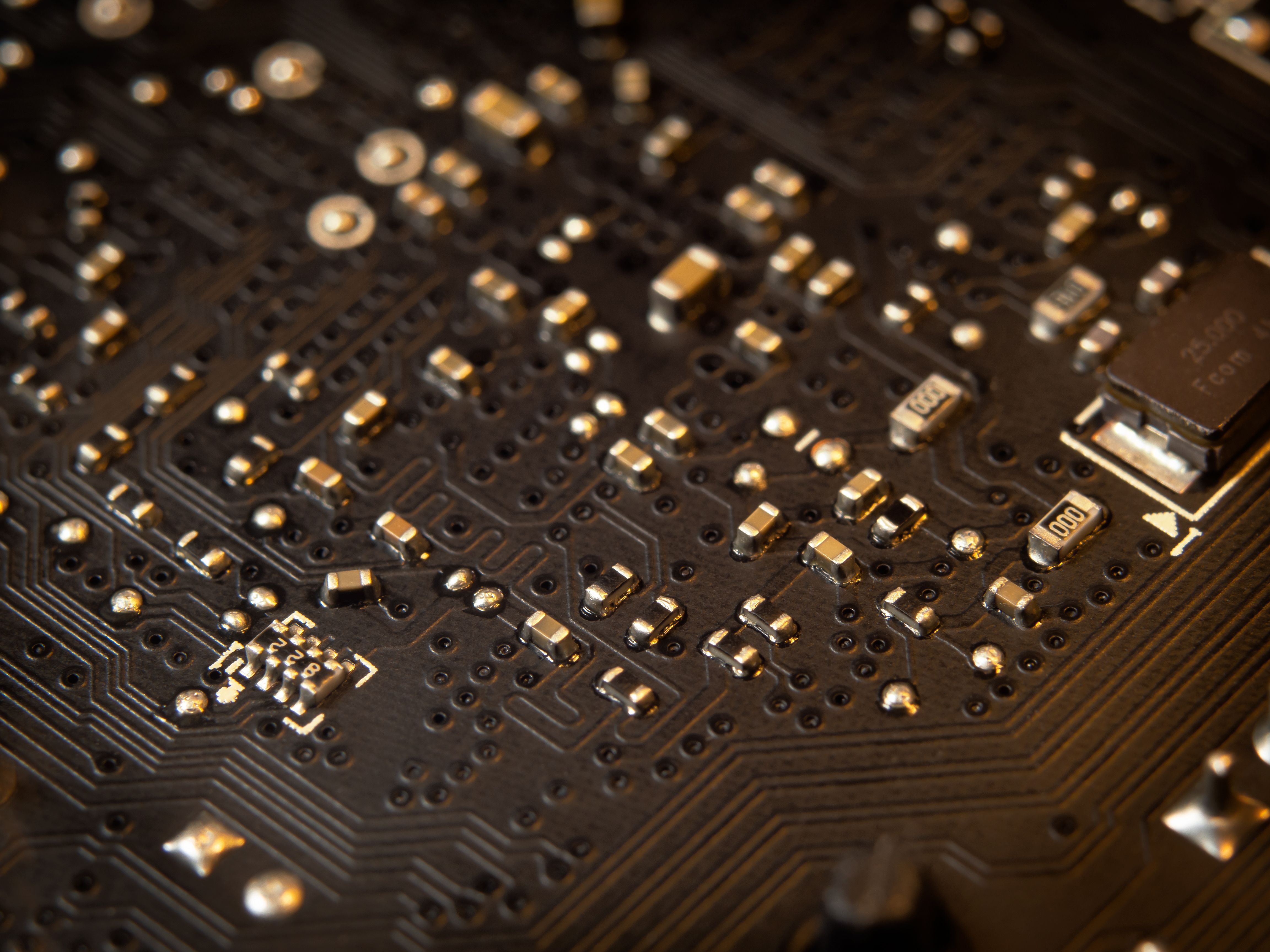

Next, trace the circuits around the 24-pin ATX power connector and the PCIe slots. Look for discoloration. A healthy board has consistent green, black, or white PCB coloring. If you see blackening, charring, or even a subtle brownish tint on the traces leading into a connector, that indicates a short circuit has occurred. Plastic insulators on connectors can melt slightly when a short happens, giving them a warped or glossy appearance that is different from the factory finish. I’ve seen boards where a single melted screw stand-off caused a short on the backplate, turning the copper traces into black carbon. If you see this, the board is likely dead or extremely risky to power on.

Auditory and Olfactory Cues: Beeps and Smells

Sometimes, your nose knows before your eyes do. A distinct smell of burnt plastic or ozone is the most urgent signal. It usually means a component has physically failed and is releasing insulation gas. If you smell this, unplug the PC immediately. The smell often points to the VRM heatsink area or the GPU power connectors, but it can also originate from a failing power supply blowing a capacitor. Distinguishing the two requires removing the PSU and smelling the board directly.

Then there are the beeps. Old BIOS systems used "beep codes" to communicate errors. While modern UEFI boards often use LED codes, many still fall back to beep patterns for fatal errors. Here is a quick reference for generic beep patterns you might hear:

1. One long, two short beeps: This is almost always a video card issue. It means the BIOS found the graphics card, but it failed self-test. It could be the GPU, or it could be a fault in the PCIe slot on the motherboard.
2. Continuous beeping: This usually indicates that the RAM is not detected or the CPU is not seated properly.
3. Short rapid beeps: Often points to a thermal issue or a failure in the power-on self-test (POST) sequence regarding memory.

If you are experiencing a motherboard beeping code no display scenario where the fans spin but the screen stays black, note the pattern. If there are no beeps at all, the problem is more likely with the Power Supply Unit (PSU) or the CPU rather than the board itself, as a working board will almost always attempt to signal an error if it detects a lack of memory or video.

Behavioral Symptoms: When to Suspect Motherboard Failure

Physical damage is only part of the puzzle. Motherboard failure signs often manifest as weird behavior in Windows or the system refusing to start. This is where the diagnosis gets tricky because other components can mimic these exact symptoms. However, there are patterns that point specifically to the board.

Power and Boot Issues: The 'Won't Turn On' Scenario

Let’s address the most stressful scenario: the pc won't turn on motherboard symptoms. You press the power button, the case lights might flash, the fans might spin for a second and stop, or nothing happens at all. This is the "Black Screen of Death."

Here is a simple 3-step isolation test I use to determine if it’s the board or the Power Supply Unit (PSU):

1. The Paperclip Test: Use an old, known-good 24-pin ATX cable. Bridge the green wire (PS_ON) to any black wire (Ground) directly at the connector end, away from the board. If the fans spin constantly, your PSU is likely fine, and the issue is the motherboard’s power delivery circuit or the front panel button.
2. Visual Check for Shorts: Remove the motherboard from the case. Place it on a non-conductive surface (like an anti-static bag). Check the standoffs. A missing standoff that touches the backplate and a screw is a classic cause of dead boards due to a short circuit.
3. Minimal Boot Configuration: Reinstall the board on the bench. Connect only the CPU, one stick of RAM, and the PSU. No GPU (if CPU has iGPU), no SSD, no USB devices. If it still fails to POST, the board is the primary suspect. If it POSTs, start adding components one by one to find the culprit.

Instability, Overheating, and Random Restarts

Another major motherboard failure signs category is instability under load. Your computer works fine when browsing but crashes or restarts randomly when you open a game or render video. This is often linked to the VRM.

The VRM manages voltage delivery to the CPU. If the VRM components are failing, they can’t handle the heat load, leading to thermal throttling or sudden power cuts to protect the processor. I’ve tested many boards where the VRM temperatures spiked above 100°C under sustained load, causing the system to shut down instantly. If you are wondering why is my computer overheating motherboard, check the cooling on the VRM heatsink. It’s not just the CPU fan; the board itself needs airflow. If the VRM fan is dead or the thermal paste on the VRM has dried out, the board will shut down the system to prevent damage.

Random restarts can also be caused by a failing power rail. If the 12V line sags when the GPU loads up, the system will cut power. This mimics a motherboard fault but is often a weak capacitor on the board. Monitoring your system logs in Event Viewer or using software like HWMonitor can show you voltage drops. If you see the 12V rail dipping significantly during crashes, suspect the board’s power delivery section.

How to Test Motherboard: A 5-Step Diagnostic Protocol

Now that you’ve identified potential how to test motherboard issues, let’s get hands-on. I recommend a systematic approach to avoid wasting time.

Step-by-Step Isolation and Software Diagnostics

1. Reset the CMOS: This is the first step for 90% of boot issues. Locate the small coin-cell battery on the board. Remove it for 30 seconds, or use the "CLRTC" jumper. This wipes all BIOS settings, including overclocks and corrupted configurations. If your system was unstable due to a bad BIOS reset scenario or bad XMP profile, this fixes it instantly.
2. Use a POST Card: If you have a digital diagnostic card, plug it into a PCIe slot. Power on the PC. The card displays 2-digit codes. A code stuck at "00" or "05" often means the CPU is not communicating with the board. A code that cycles through numbers and stops at a specific error (like "A0" for memory failure) gives you a precise location. Without a card, you’re guessing.
3. Test RAM Slots Individually: Remove all RAM. Insert one stick into the primary slot (usually slot A2). Boot. If it fails, move that stick to the next slot. Continue this process. If a specific slot never works, you have RAM slot corruption. This is a physical trace failure on the board. If a specific stick fails in all slots, that stick is dead.

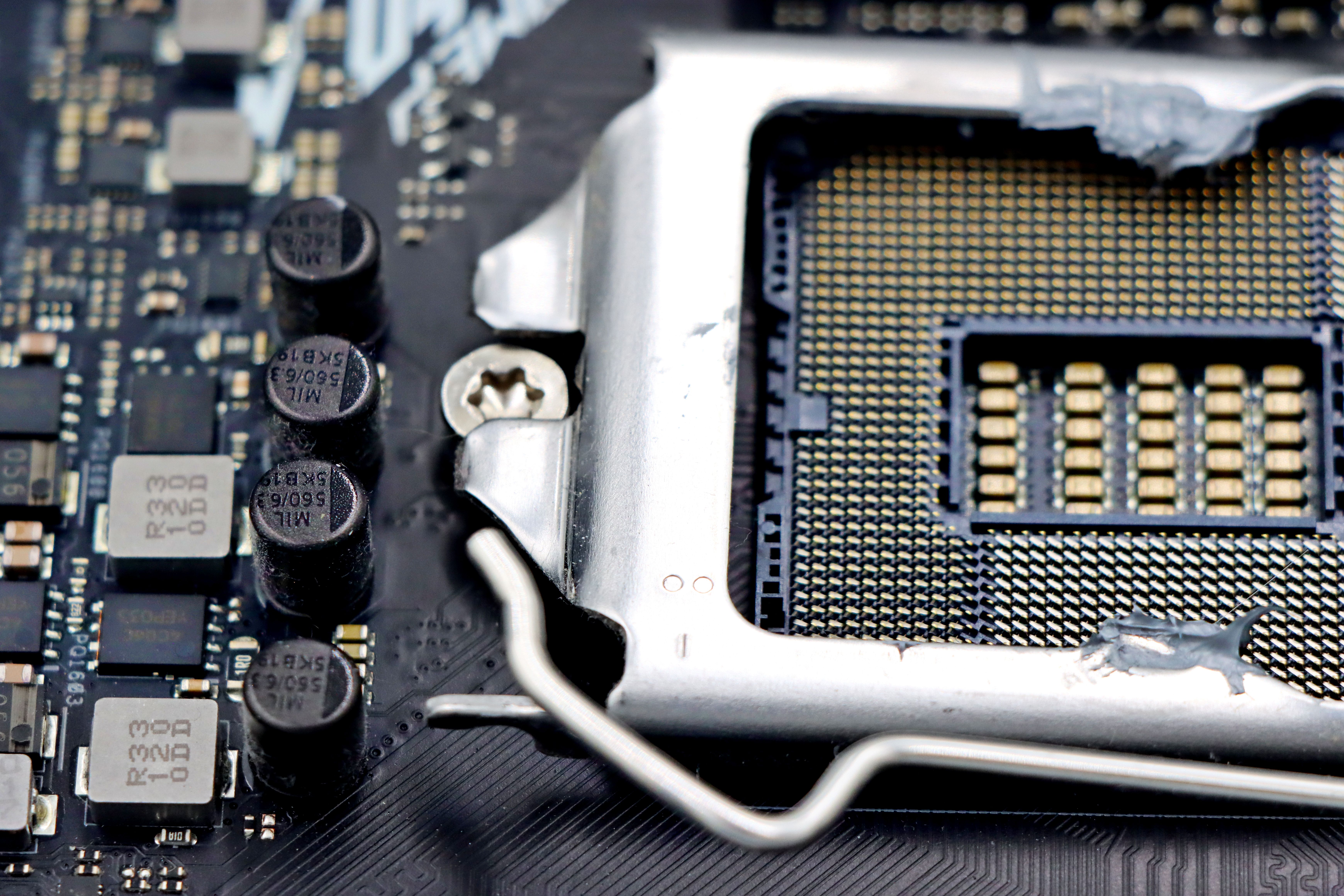

4. Check for Bent Pins: Remove the CPU cooler and look at the socket. For LGA sockets (Intel), bent pins on the board are a common killer. For PGA sockets (older AMD/Intel), check the CPU for missing pins. Even one missing pin can cause intermittent boot failures.
5. Run MemTest86+: If the board boots but is unstable, create a bootable USB with MemTest86+. Run it for at least one full pass (4+ hours). Errors here point to either bad RAM or bad board traces.

False Positives: Ruling Out Non-Motherboard Issues

Before you buy a new board, rule out these common mimics. I’ve seen clients spend $200 on a new motherboard only to find the issue was a $5 cable.

The Economic Decision: Repair, Replace, or Scrub

So, you’ve confirmed the board is bad. Now comes the buy cheap motherboard decision. Is it worth it?

Repair Viability: What Can Actually Be Fixed?

The short answer to "Can a motherboard issue be fixed?" depends on the damage type.

• Repairable (DIY or Pro): Failed capacitors (if you have soldering skills and replacement caps), faulty fan headers, broken USB ports, or a dead CMOS chip. Professional microsoldering can fix these, costing between $50 and $150 for the labor and parts.
• Unrepairable: Damage to the chipset, a fractured solder joint on the CPU socket, or multi-layer PCB cracking. These require specialized reflow ovens and technical skill that is rarely cost-effective for a desktop board. If the main northbridge/southbridge or the PCH is dead, replace the board.

I advise against attempting microsoldering on your main PC unless you are an enthusiast. The risk of turning a $100 repair into a $300 loss is high. For laptops, the economics are different; the board is more integrated, making repair almost impossible for the average user.

Replacement Costs: 2024-2026 Market Prices

When it comes to replacement motherboard prices 2024 and beyond, the market is stable but tiered.

• Budget ($50-$100): Brands like Gigabyte B660M or MSI A520M. These are sufficient for office PCs and light gaming. They often lack robust VRM cooling, so keep fans running.
• Mid-Range ($100-$200): Brands like ASUS B760, Gigabyte X670, or MSI Z790. This is the sweet spot for most gamers. Better VRMs, more USB ports, and often Wi-Fi 6/6E included.
• High-End ($200+): For enthusiasts and overclockers. These boards have massive VRM heatsinks, more PCIe lanes, and premium audio/networking chips.

If you are looking for the best motherboard for gaming pc, don’t just look at price. Look at the VRM phase count and the heatsink quality. A cheaper board with a weak VRM will throttle your expensive CPU. Conversely, if your build is already 3-4 years old, buying a new motherboard usually means buying a new CPU (due to socket changes) and new RAM (DDR5 vs DDR4). In this case, it’s not just a board swap; it’s a system refresh. Compare the cost of a new board ($150) + new CPU ($300) + new RAM ($100) against a used, compatible board ($50) or a full system upgrade.

FAQ

What are the signs of a short circuit on a motherboard?

Immediate physical indicators include a burnt smell, visible smoke, or the PSU’s fuse blowing (the power switch won't stay on). You may also see melted plastic on connectors. If you suspect a short circuit, cut power immediately to prevent fire risk or further component damage.

How much will it cost to replace a motherboard?

Globally, the board itself ranges from $50 for a budget board to $500+ for high-end enthusiast models. If you hire a professional to install it, add $50-$100 for labor. If you are doing a full system refresh (new board, CPU, RAM), the total cost can exceed $800.

Can a faulty motherboard cause random shutdowns?

Yes. If the VRM is unstable or suffering from thermal throttling, the board will cut power to the CPU to prevent permanent damage. This looks like a random shutdown. Monitor your VRM temperatures; if they exceed 100°C under light load, the board is likely the culprit.

How long does it take to fix a motherboard?

Diagnosis takes 1-2 hours if you have the right tools (POST card, known good PSU). Physical repair via microsoldering takes 2-5 days due to lead times for components. A replacement is a 30-minute physical swap, but you may need an additional hour to reinstall the OS or transfer drivers.

Conclusion

Navigating motherboard problems symptoms requires a balance of technical observation and economic logic. Use this matrix for your decision:

• Critical Failure (No Power, Smoke, Cracks): Replace immediately. Do not attempt repair.
• Intermittent Faults (Random Restarts, USB Dropouts): Test first. 50% of the time, it’s a loose cable or bad RAM.
• Repair vs. Replace Rule: If the cost of repair is less than 50% of the cost of a new equivalent board, repair it. Otherwise, replace it.

Finally, protect your investment. Use a surge protector, keep your case clean to ensure VRM airflow, and avoid liquid exposure. Bookmark this diagnostic checklist. When you finally decide to buy cheap motherboard replacements, you’ll know exactly which features matter for your build. Your data and your wallet will thank you.
