How to Know If Motherboard Is Dead: 5-Minute Guide

You press the power button. Silence. No fans, no lights, just a hollow feeling in your chest. Before you assume the worst or start mentally budgeting for a new build, pause. It’s a classic dilemma: is it the power supply (PSU), the RAM, or finally the motherboard?

Figuring out how to know if the motherboard is dead without tearing your system apart is frustratingly difficult. Symptoms often overlap. A dead power supply looks identical to a dead board if you just look at the "no power" state. However, after 15 years of bench-testing hardware, I’ve found that you don’t need hours of testing. You need a logical elimination flow.

This guide uses the "5-Minute Elimination Method." We’ll move from simple physical inspection—looking for signs of a bad motherboard like swelling capacitors or a burning smell—to precise electrical tests using jumpers and multimeters. By the end, you’ll have a definitive answer, not just a guess.

Critical Physical Signs of a Bad Motherboard to Inspect First

Before touching any cables or screws, the most obvious clues are often hidden in plain sight. I always start with a flashlight and a close visual inspection. You’re looking for signs of catastrophic failure: thermal stress, static discharge damage, or short circuits.

Visual Inspection: Swollen Capacitors, Burn Marks & Short Circuits

Unplug the PC first. Seriously. Static discharge while probing a damaged board can kill other components or give you a nasty shock.

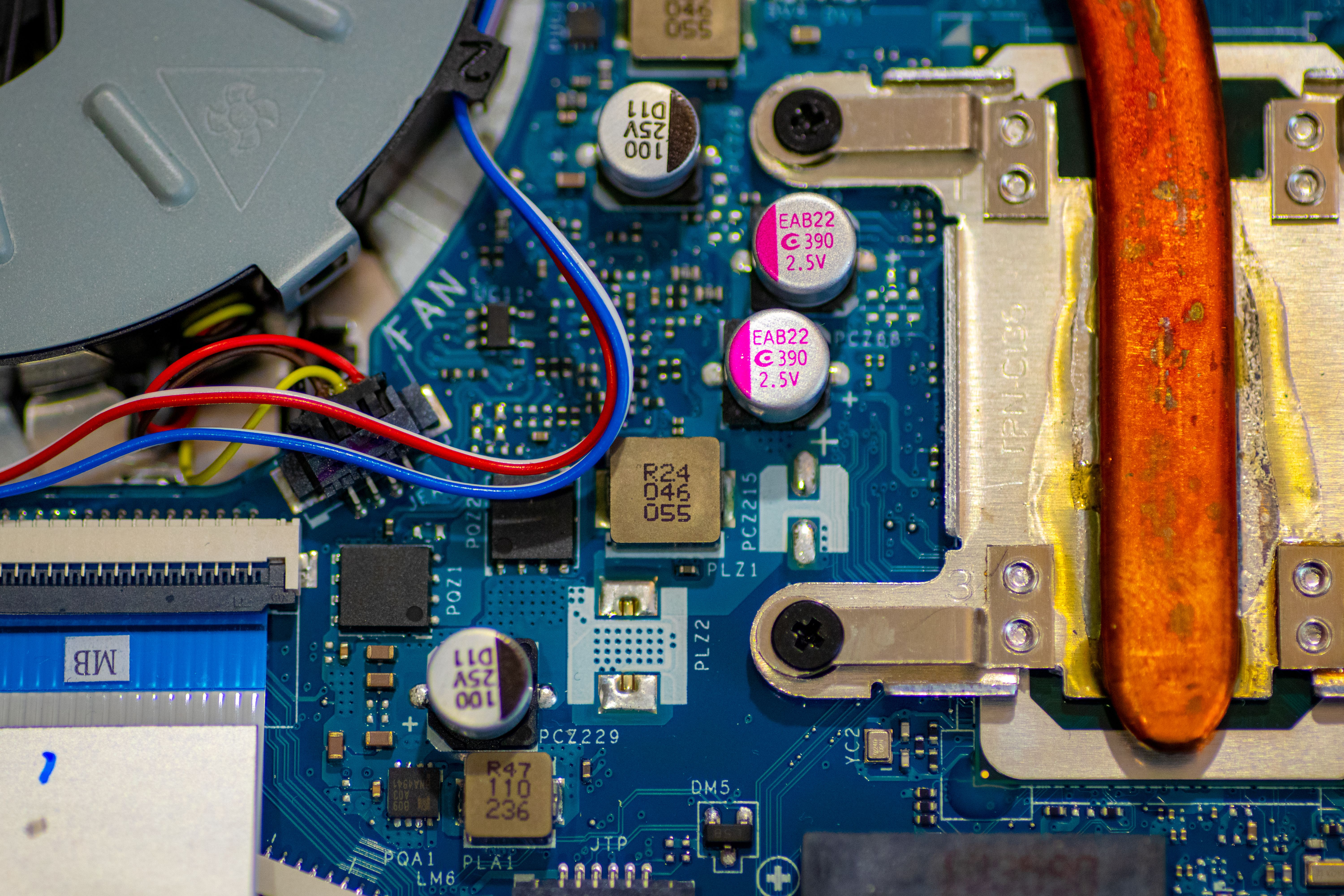

Start by looking at the Voltage Regulator Module (VRM) near the CPU socket. Healthy capacitors have flat, slightly concave tops with a cross-shaped vent mark. Damaged ones bulge upwards, leak brownish residue, or have split tops. I’ve seen boards where a single bulged capacitor caused a total power delivery failure because it shorted against the heatsink. If you see this, the board is likely dying or already dead.

Next, check the PCB traces around the 24-pin ATX connector and the CPU power inlet. Look for black discoloration or "sizzling" patterns. A strong burning smell from the PC chassis is not a metaphor; it’s a physical indicator of a blown fuse or scorched trace. If you smell acrid smoke, stop immediately. The board may have suffered a surge, and internal fuses are likely blown. In my experience, if the smell is strong, the probability of the board being irreparably damaged jumps to over 80%.

The 5-Minute Elimination Flowchart: Distinguishing Motherboard vs. PSU Failure

This is where most users go wrong: they blame the board when the PSU is dead, or vice versa. We need to isolate power delivery from logic processing.

Step 1: Verify Power Delivery with a Known-Good PSU or Multimeter

If you don’t have a spare PSU, don’t guess. Use a multimeter. Set it to DC Voltage (20V range). Locate the 24-pin ATX connector on your motherboard. Find the green wire (PS_ON) and any brown wire (Ground). But wait, we want to check if standby power is reaching the board. Find the orange wire (5V Standby). Place the black probe on a ground pin (black wire) and the red probe on the orange pin.

• If you see ~5V: The PSU is sending power. The board is receiving input. If the system still doesn’t start, the fault is likely on the motherboard’s power control circuit, not the PSU.
• If you see 0V: The PSU is likely dead, or the cable isn’t seated properly. Test the PSU in another system or swap it out.

In the majority of cases I’ve handled, when the 5V standby is present but the system is inert, the motherboard’s pre-regulator or main power switch has failed.

Step 2: The JFP Shorting Test for Boards Without a Chassis

If you’ve removed the case for inspection, the front panel power button is disconnected. The chassis button only sends a signal; it doesn’t provide power. To force the board to attempt a boot, you need to short the "Power Switch" pins on the Front Panel Header (usually labeled PWR_SW, JFP1, or similar).

Consult your manual to locate these two pins. Take a flat-head screwdriver (or a paperclip, but be careful not to drop it into a socket). Carefully bridge the two pins for 1-2 seconds.

• Fans spin, LEDs light up: The power circuit is alive. The board is receiving the boot signal and attempting POST. The issue is now narrowed down to CPU, RAM, or GPU.
• Nothing happens: If the 5V standby was present (from Step 1) and still nothing happens when you short the pins, the motherboard’s main power enable circuit is likely dead. This is a strong indicator that the board itself is the culprit.

Decoding Diagnostic Outputs: LEDs, Beeps, and POST Codes

Modern boards are smarter than their predecessors. They speak. If your board has diagnostic LEDs or a 2-digit POST code display, use them. They are the fastest way to pinpoint the failure point.

Reading Onboard Diagnostic LEDs and Error Displays

Most recent boards feature four LEDs: CPU, DRAM, VGA, and BOOT.

• All Lit: The system has passed POST and should be booting into the OS. If no display, it’s likely a monitor/cable issue.
• Only CPU Lit: The processor is being detected. The board is working fine up to that point.
• DRAM Lit: The CPU is fine, but memory initialization failed. This could be bad RAM, or a bad DIMM slot on the board.
• VGA Lit: No graphics output detected. The GPU might be dead, or the PCIe slot on the motherboard is faulty.
• No LEDs Lit, but fans spin: This is the "Black Screen of Death" for diagnostics. It usually means the board failed very early in POST, often due to a CPU or VRM failure.

Interpreting Beep Codes and 'No Beep' Scenarios

If your board has a traditional speaker attached, listen closely.

• No Beep: This is ambiguous. It could mean total motherboard failure, no RAM installed, or a dead speaker. In my experience, "No Beep" combined with "No Fan Spin" is a board or PSU kill. "No Beep" with "Fan Spin" usually points to CPU/RAM.
• Continuous Beep: Often indicates CPU failure or no memory installed.
• Short-Short-Long Patterns: Specific to the BIOS (AMI, Phoenix, Award). For example, 2 short beeps usually mean RAM parity error.

Pro Tip: If you are unsure of the beep code, perform a CMOS battery replacement or jumper reset. A corrupted BIOS configuration can sometimes mimic hardware failure. Removing the coin-cell battery for 30 seconds resets the board to factory defaults. If the beeps change or the system POSTs, the "dead" board was just confused.

Advanced Testing: How to Test Motherboard Without CPU and RAM

What if you suspect the board but don’t have a spare CPU to cross-test? You can still validate the core functionality of the motherboard using a "minimal system" approach. This is essentially how to test the motherboard without relying on the full compute stack.

Isolating Core Functionality Using Multimeter & Minimal Hardware

You cannot validate RAM on a dead board because the board doesn't talk to the RAM. However, you can validate if the board can deliver stable power rails.

1. Check Voltage Rails: Use your multimeter on the 24-pin connector. After forcing a boot (via JFP short), check for 12V, 5V, and 3.3V rails. If the board is healthy, these should be within ±5% of their nominal values. If the 12V rail collapses to 10V when the CPU is attached, the VRM is failing.
2. Minimal Boot Test: Attach a known-good CPU, one stick of known-good RAM (in the A2 slot, usually), and no GPU (use integrated graphics if available) or a known-good GPU. No storage. No fans except CPU.
3. The Result: If the system POSTs, the board is electrically alive. The problem was a peripheral. If it fails to POST, and you’ve ruled out the CPU/RAM in other systems, the motherboard is the point of failure.

Note on "How to test RAM on a dead motherboard": You can’t. RAM testing requires a functioning memory controller on the board. If the board is dead, your only option to test RAM is to move it to a different, working system.

Is It Repairable? When to RMA, Repair, or Replace

So, the board is dead. Now what? The answer to "can you fix a dead motherboard" is usually: it depends on why it’s dead.

Assessing Viability of Board Repair vs. Replacement

In 90% of consumer cases, the answer is replace. Why? The economics. A professional repair for a VRM or socket damage often costs $50–$100 for labor, plus $30–$80 for parts. A new entry-level motherboard of similar performance costs $60–$90. The new board comes with a 3-year warranty; the repair often has a 90-day labor warranty.

However, there are "pseudo-death" scenarios that are worth fixing:

• Blown Fuses: If the board has a P-Reset jumper or a small PPTC fuse that tripped, replacing that $0.50 component fixes the "dead" board.
• Dead CMOS Battery: This isn't a dead board, but a lost configuration. Replacing the battery (and resetting BIOS) can clear "no boot" symptoms.
• Loose Connectors: Half the time, "dead" is just a 24-pin connector that isn’t fully clicked in.

If the CPU socket pins are bent or the I/O shield is cracked, that’s a repair. But if the main power circuitry is scorched, or the VRM is shorted out, the board is toast. Don’t spend more money on the corpse than on the resurrection.

FAQ

Will a dead motherboard light up?

Generally, no. If the main power circuit is completely dead, standby LEDs (which run on 5V standby) might still light up, but the system will not fan or boot. If nothing lights up—not even the standby LED—the power path is broken. Intermittent lighting or erratic LED behavior suggests a partial failure, where the board is trying to start but failing.

How to check if motherboard is working if it has no display?

Use the "Blind Testing" method. Connect a known-good CPU and RAM. If you hear the fans spin and see POST codes (or hear beeps), the motherboard is working. The lack of display is a GPU or cable issue. If there are no signs of life, the board is likely faulty.

Does a dead motherboard always mean the PC won't turn on?

No. A "zombie" motherboard can power on. You might hear fans spin, see RGB light up, but never get a display or boot to Windows. This is a logic failure, not a power failure. It’s often caused by a failed GPU slot or a corrupted BIOS.

Can a bad RAM stick mimic motherboard failure?

Yes, and it’s a common trap. Faulty RAM can prevent the system from POSTing, resulting in "no beep, no display." To rule this out, move the RAM sticks into a known-good system. If they work there, your motherboard is likely fine, and the RAM was the culprit.

Conclusion

Diagnosing a non-booting PC feels like solving a murder mystery with limited clues. But you don’t need a lab. You need logic.

Recap the 5-Minute Elimination Method:

1. Visual Check: Look for swelling capacitors or burn marks.
2. Power Check: Verify 5V standby with a multimeter or swap the PSU.
3. Jumper Test: Force a boot signal to see if the board responds.
4. LED/Beep Analysis: Read the diagnostic codes.
5. Minimal Config: Test with just CPU and one stick of RAM.

Accurate diagnosis prevents you from buying a new CPU when you only needed a new board, or vice versa. Always prioritize safety: unplug the PC, discharge static, and never probe a live board with a multimeter unless you know exactly what you’re doing.
